Can't Find the Seal? Measure It and Match It Yourself

Parts store counter guy shrugs. No listing, VIN doesn't pull it, and the book stops at a year that isn't yours. Happens on older stuff, oddball imports, and anything somebody already swapped a different engine into. You can stand there guessing, or you can measure the seal and order it right the first time.

Measure the Bore, Not the Old Seal

Pull the old seal out and it's already junk. The lip is worn, the OD is crushed from being pressed in, and the metal is bent from the pry bar. Measuring it gives you a number that fits the trash can, not the housing.

Clean the bore. Measure the bore ID with calipers in two directions, 90 degrees apart, and average the two. That's your seal OD. If the bore is out of round by more than a few thousandths, no seal will hold and you have a different problem.

Measure the Shaft Where the Lip Rides

Seal ID rides on the shaft, so measure where the lip actually sits. Not the whole journal, the wear track. Run a fingernail across it. If the nail catches in a groove, the shaft is done and a new seal won't fix it. That's the classic shaft wear groove, and a speedi-sleeve is cheaper than the comeback.

Read the Numbers Right

Seals are listed ID x OD x width, in that order. Every time. Metric seals are usually whole millimeters. Inch seals come in fractions that convert to ugly metric numbers, and that's where people order wrong.

Say your bore measured 2.047 inches. That's 52 mm. A seal listed at 35 x 52 x 7 is your seal. Trust the conversion, not the fraction.

Then check the lip: single lip, dual lip, spring loaded. Match the material to the fluid too, because the wrong elastomer fails early no matter how well you install it.

Install It Square or Do It Twice

A seal driver is worth the money. A socket and a hammer works until it doesn't. One cocked strike and the seal sits in at an angle and weeps. Drive it square, to the same depth as the original, and lube the lip with the fluid it's sealing, not grease.

If you're still fighting the job, the usual killers are covered in five install mistakes and getting the old one out clean.

What We Use

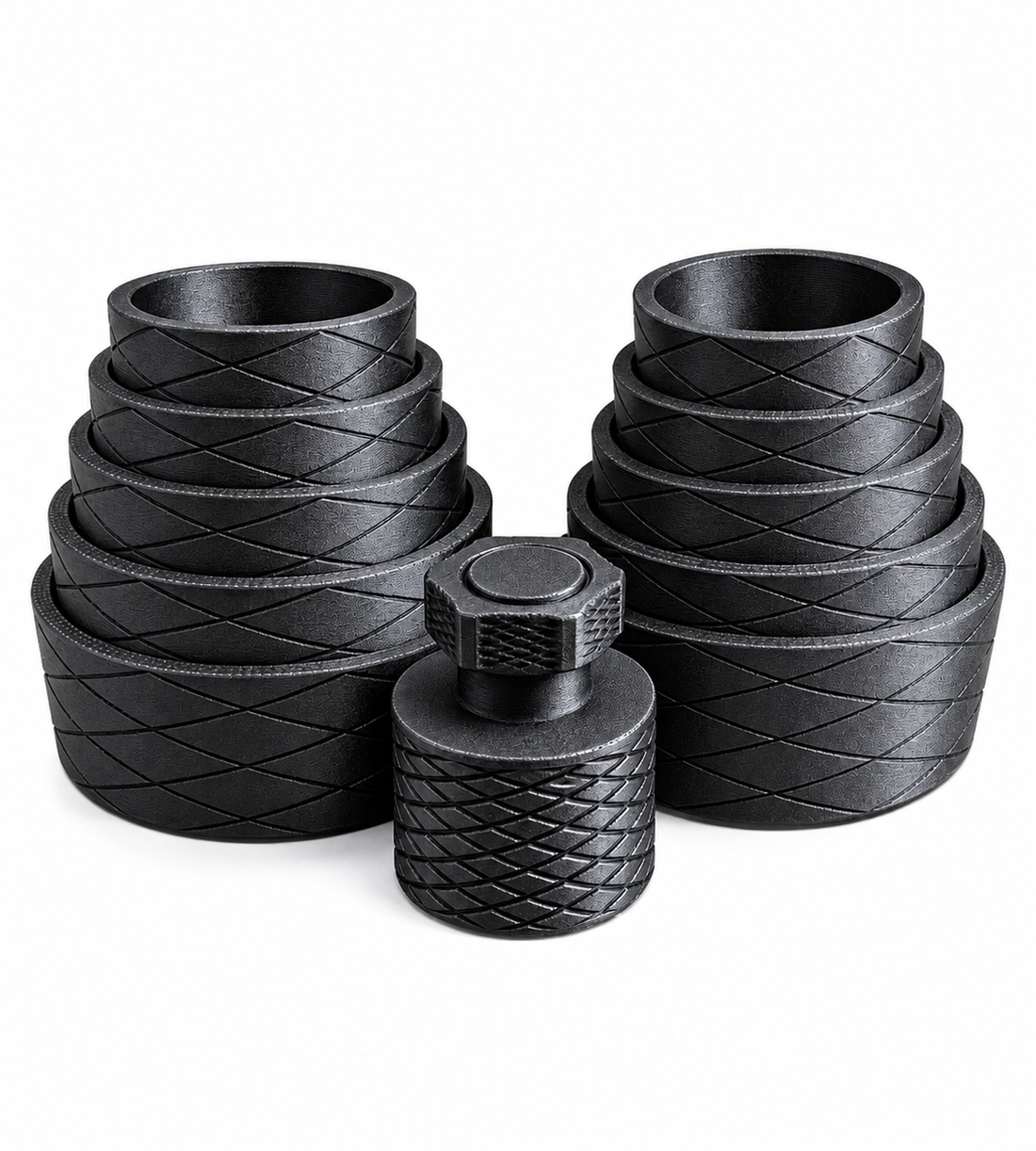

We built the Seal Installer Pro Kit for exactly this. Stepped composite cups that press a seal square in one hit, instead of chasing it around the bore with a socket. PA12-CF carbon fiber nylon, sized for the diameters that actually show up in a shop, made in the USA.
