4WD Not Engaging? Test the Actuator Before You Sell a Transfer Case

The 4WD light flashes, the switch clicks, nothing engages. The customer needs four-wheel drive before the first freeze, and the shop across town already quoted a transfer case. Before you go there, prove which side failed. Push-button 4WD is two systems pretending to be one.

Know Which System You Are Testing

A manual-lever truck is a different animal. Push-button or dial setups have two pieces: the shift motor on the transfer case, and the front axle disconnect that locks the front axle halves together.

The shift motor is a reversible 12V motor with a position encoder and a module watching it. The front axle disconnect is a vacuum diaphragm or another small motor pushing a fork that slides a collar. The case can be perfect and the truck still has no 4WD because the front axle never locked in.

Read the Module First

A flashing 4WD light is a stored code, not decoration. Pull codes from the transfer case control module, not just the PCM. Plenty of generic scan tools never show them.

Inputs block engagement as often as mechanical faults do. Vehicle speed, transmission range, and the case position sensor all have to agree before the module moves the motor. A dead wheel speed sensor can shut down 4WD and send you selling a transfer case that was never broken. Mismatched tires do the same to an auto-mode system.

Test the Actuator Before You Sell the Case

Vacuum front axle: engine running, pull the line at the actuator. Vacuum in 4WD, a vent in 2WD. If the diaphragm holds vacuum but the fork does not move, the actuator is fine and the fork or collar is the problem.

Electric actuator or shift motor: two wires, DC motor. Put 12V to it and it should run hard one direction. Flip the leads and it should run back. No motion either way means you found it. Runs both ways on the bench and the truck still will not engage? Look upstream at the wiring, module, or position feedback. Flex the harness at the case while someone works the switch, and voltage-drop the ground.

Do Not Force the Shift

The collar has to be unloaded to slide. That means stopped or rolling a couple miles an hour, and neutral for low range. Shifting into 4L at road speed sets a code and chews the collar teeth.

Engaging while a wheel is spinning is worse. The collar grinds and the next guy inherits the noise. If the switch is suspect, test the relay before ordering parts.

What We Use

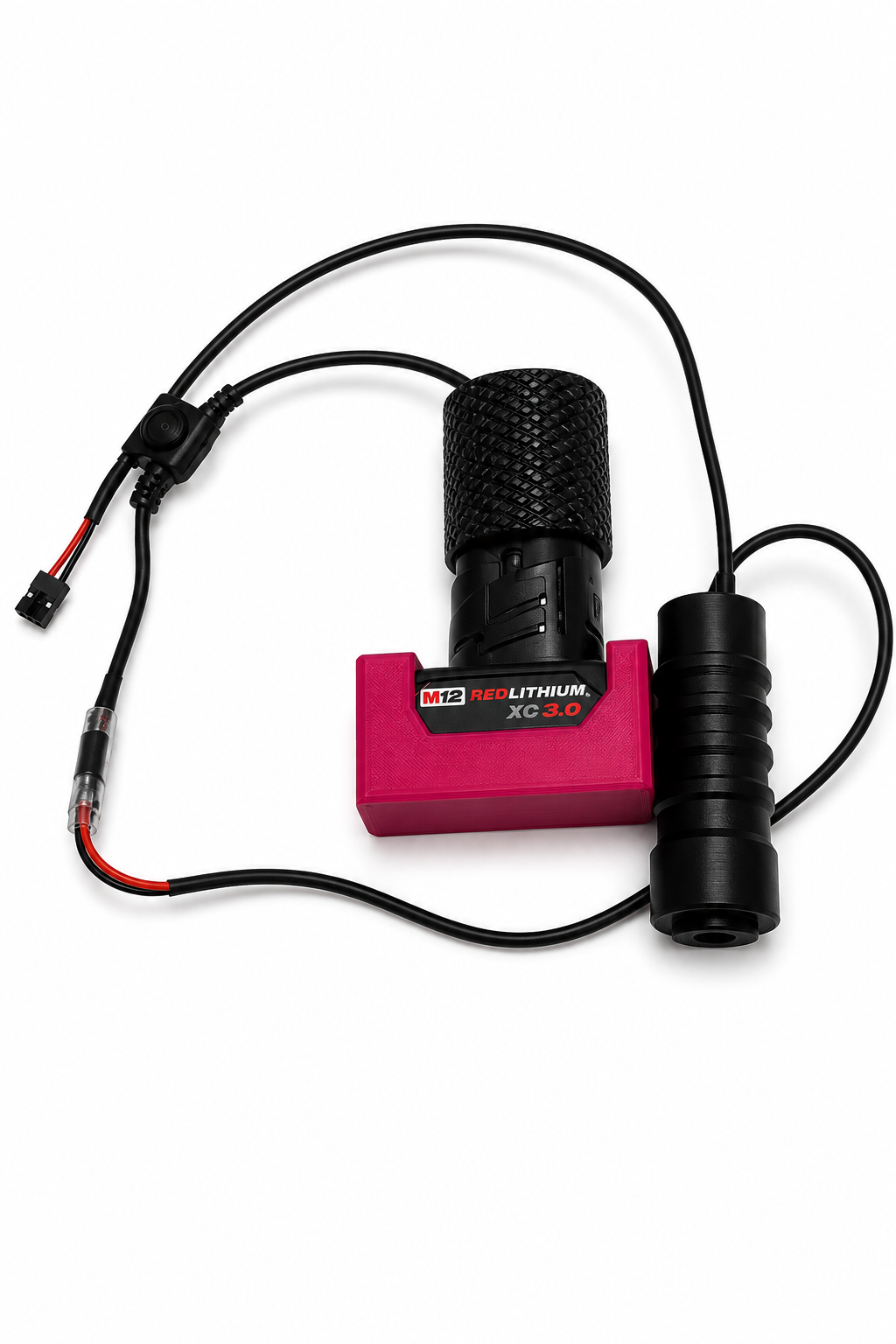

Bench testing a shift motor used to mean dragging jumper wires to the truck battery and holding leads by hand. The Kaizen Forge M12 Power Adapter turns an M12 pack into a portable 12V source with a reverse polarity switch, so you flip a switch instead of swapping leads to run the motor both directions. Test actuators off an M12 battery instead of the truck.
