ABS Light On? Test the Wheel Speed Sensor Before You Buy the Hub

A wheel speed code points at one corner, and the parts cannon points at the hub. On most late-model cars the sensor is molded into the assembly, so a fifteen-dollar pickup becomes a two-hundred-dollar bearing job that doesn't fix the light. Prove the sensor and the harness first. Twenty minutes with a meter.

Start With Live Data, Not the Code

The code names a corner, not what failed: sensor, ring, or wire. Pull all four speeds and drive ten feet. Three track and one sits at zero: open circuit. One drops out at the same road speed every drive: mechanical, a damaged ring or a gap opening up. One jumps around while the car sits still: wiring.

Look at the Air Gap and the Ring

Rust causes more false sensor diagnoses than anything else on a salt-belt car. Corrosion under the mount lifts the pickup off its ring and the signal dies at low speed — light on when you park, out on the highway. Fine metal fuzz on the sensor tip means a bearing is shedding encoder material, which is a hub problem. A cracked ring or a rust jack under it drops the signal once per revolution. Both complaints come from the same corner — see Wheel Bearing Noise? Load It Before You Pull the Hub.

Two Wires and Three Wires Test Differently

Two-wire sensors are inductive — they make their own AC voltage. Ohm them cold (1,000 to 2,500 ohms typical, check your spec), then spin the wheel by hand on AC volts. A steady rise with no dropouts is a good sensor. Three-wire sensors are active: they need power and ground before they output anything, so an ohms check proves nothing. Feed 12V and ground from a bench source, spin the hub, watch duty cycle. Flat line means a dead sensor. Clean square wave means the fault is upstream.

Flex the Harness Before You Blame the Part

Every sensor wire bends at the knuckle twice a mile. The copper breaks inside insulation that still looks perfect. Watch live data while you flex the harness at the strut and the connector — if the number flatlines mid-flex, you found it. Repair it with a proper crimp, per Crimp or Solder?, then confirm it under load with a voltage drop test.

If the light came back after a hub replacement, check which side the encoder ring sits on. Reversed rings cause more repeat ABS comebacks than failed parts do.

What We Use

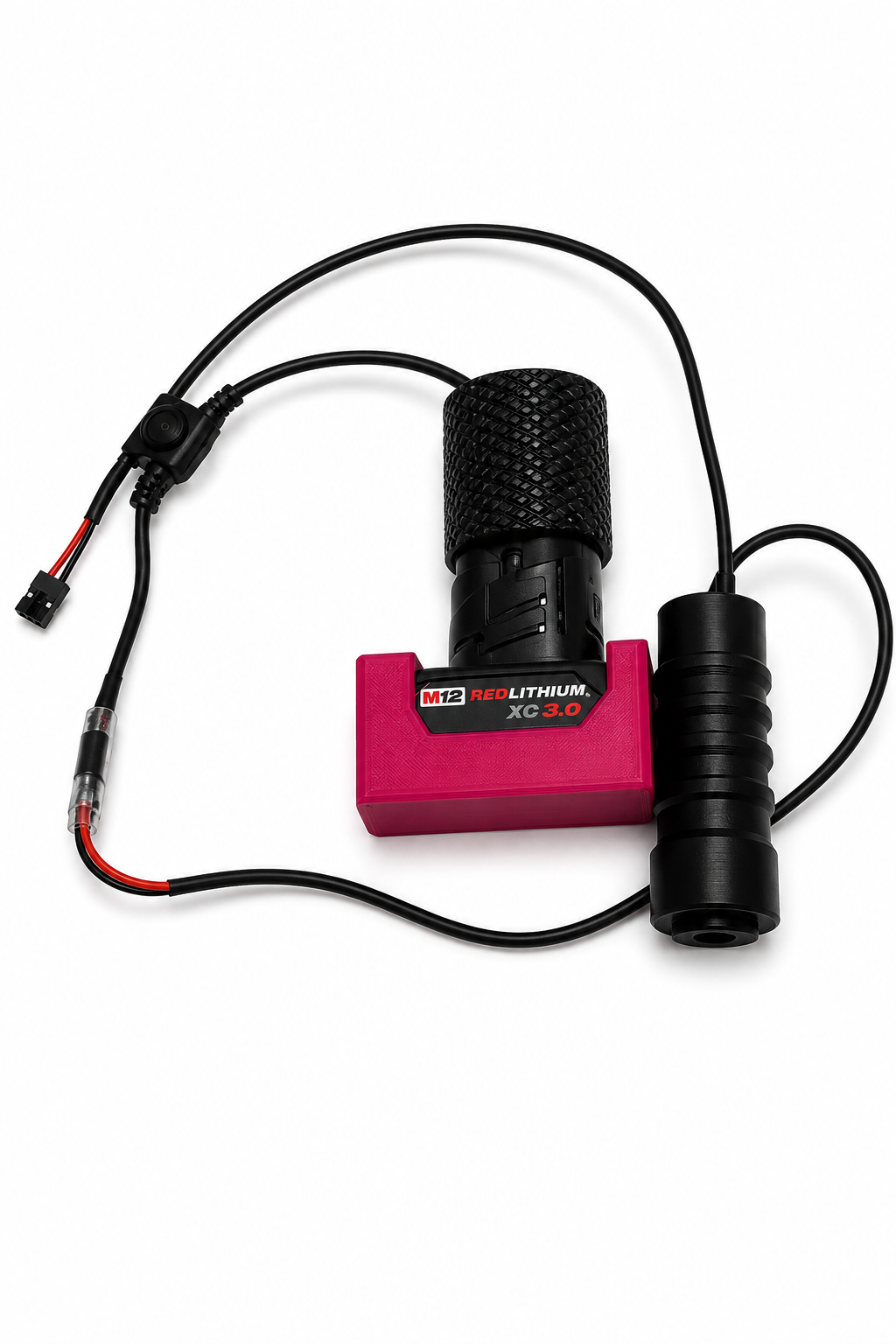

Active sensors need real power to test, and dragging a jumper off the truck gets old. The Kaizen Forge M12 Power Adapter turns an M12 pack into a 12V feed with a multi-adapter lead set, so you can power a three-wire sensor or a suspect motor at the bench. The reverse-polarity switch saves re-clipping leads every time you flip a test. Same method as Bench Testing Without a Car. PA12-CF, made in the USA.
