Trailer Lights Not Working? Split the Truck From the Trailer First

Trailer lights that come on wrong are a safety write-up waiting to happen. Brake lights that also light the tail lamps. A turn signal that blinks fast. Or nothing at all the second you plug in. Most of the time half the system is fine and one ground wire is ruining your day. Stop guessing and split the truck from the trailer.

Split the Truck From the Trailer

Unplug the trailer and test the truck side at the connector with a test light or a meter. Clip your ground to the frame, not to the connector's ground pin. Key on, then walk every function: left turn, right turn, brake, tail, and reverse on a 7-way blade. Pin 1 white ground, 3 green right turn, 5 yellow left turn, 6 brown tail, 7 purple reverse.

Everything at the plug works? The truck is done and the fault is in the trailer harness. Nothing at the plug? Check the trailer tow fuse and relay before anything else - a shorted trailer lamp blows that fuse every time you plug in. Our 60-second relay test settles it fast. Never trust a reading on a corroded pin - a voltage drop test proves the circuit holds up under load.

Ground Is the Number One Cause

Most trailers ground through the coupler and the ball. That is a rusty, greasy, part-time connection, which is why the lights work in the driveway and quit two miles down the road. Run a dedicated white ground wire from the trailer frame to the truck frame and you will fix more lighting faults than any part swap.

With a bad ground, current back-feeds through the other bulbs. Step on the brakes and the tail lamps glow. Turn on a signal and both sides flash. That is not a short, that is a missing ground. Any splice you make in there has to last: crimp it or solder it properly, because a twisted splice and a wrap of tape will be back.

Prove the Trailer Side on the Bench

Stop chasing this with the truck running. Power the trailer's own harness off a portable 12V source and watch what actually lights. Feed brown for tail, yellow for left, green for right, and keep your ground on bare frame. You will find the corroded socket, the water in a lamp housing, or the chafed wire in minutes, with the trailer nowhere near the truck. A battery pack and a couple of leads is all it takes - running 12V off an M12 pack is the cheapest bench power in the shop.

What We Use

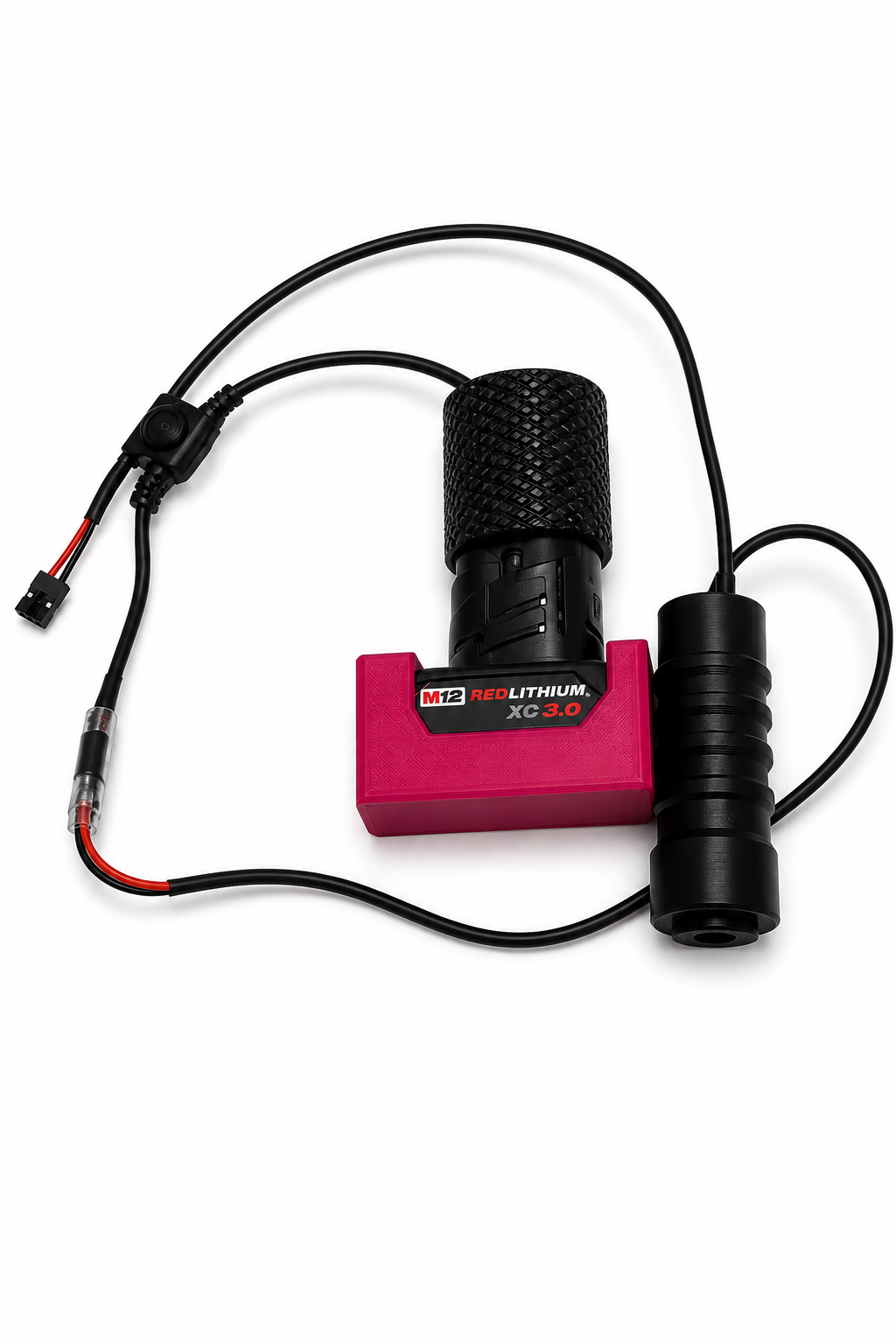

Bench work on the trailer side is where the Kaizen Forge M12 Power Adapter earns its keep. It snaps onto any Milwaukee M12 pack and gives you a fused 12V feed with a reverse polarity switch, so you can power a circuit for diagnosis without dragging the truck over. It doubles as a memory saver. Made in USA, tested in a real shop.
