Sunroof Stuck Open? Close It Manually Before You Blame the Motor

A sunroof stuck open in the rain turns a normal day into an emergency. Glass tilted up and the switch dead, or slid back and nothing happens. Before you quote a cassette assembly, you can usually walk it shut by hand and find the real fault in twenty minutes.

Close It by Hand First

Almost every factory sunroof has a manual override. Look in the headliner next to the motor behind a small plug. You will find a hex drive, usually 4mm or 5mm, or a crank in the glovebox.

Turn it slow. That drive runs through the same cables that move the glass. If it fights you, stop and look at the tracks. Forcing a stuck cable snaps the end off and turns a cheap repair into a full assembly.

Dead Switch, Dead Motor, or Dead Track

Three faults look identical at the switch and read different at the motor. No click, no movement says fuse, switch, or motor. Pull the motor connector and backprobe it with the switch held one direction, then the other.

You want 12V one way and 12V reversed the other. Nothing either direction means the switch or module is not sending power, so the motor is innocent. Power both ways with a dead motor means the motor is done.

One Direction Working Is a Switch Clue

A sunroof motor is one motor run backwards for the opposite direction. Tilt works and slide does not? The windings are fine, because the same windings drive both. That fault is in the switch, the module, or a track limit.

Bench it and you will know. Power the motor off a portable 12V source, flip polarity, watch both directions. Snaps hard both ways, stop looking at the motor. Grinds or stalls, open it up and check the brush plate for water and rust.

Glass Not Moving, Motor Whirring

Motor spinning with no glass movement means a stripped or snapped cable, a cable popped out of the track, or glass separated from its gate. Pull the glass and inspect the cable ends for chewed teeth.

Check the four corner drain tubes while you are in there. A sunroof is not watertight, it drains. A plugged tube puts water in the footwell and everybody blames the seal.

After a Battery Job, Re-Learn It

A dead battery or a draw test that pulled power can wipe the module's position memory. The roof then stops short or refuses to close. Most cars normalize by holding the switch toward close for 10 to 20 seconds until the glass bumps and stops. Do that before you diagnose anything mechanical.

What We Use

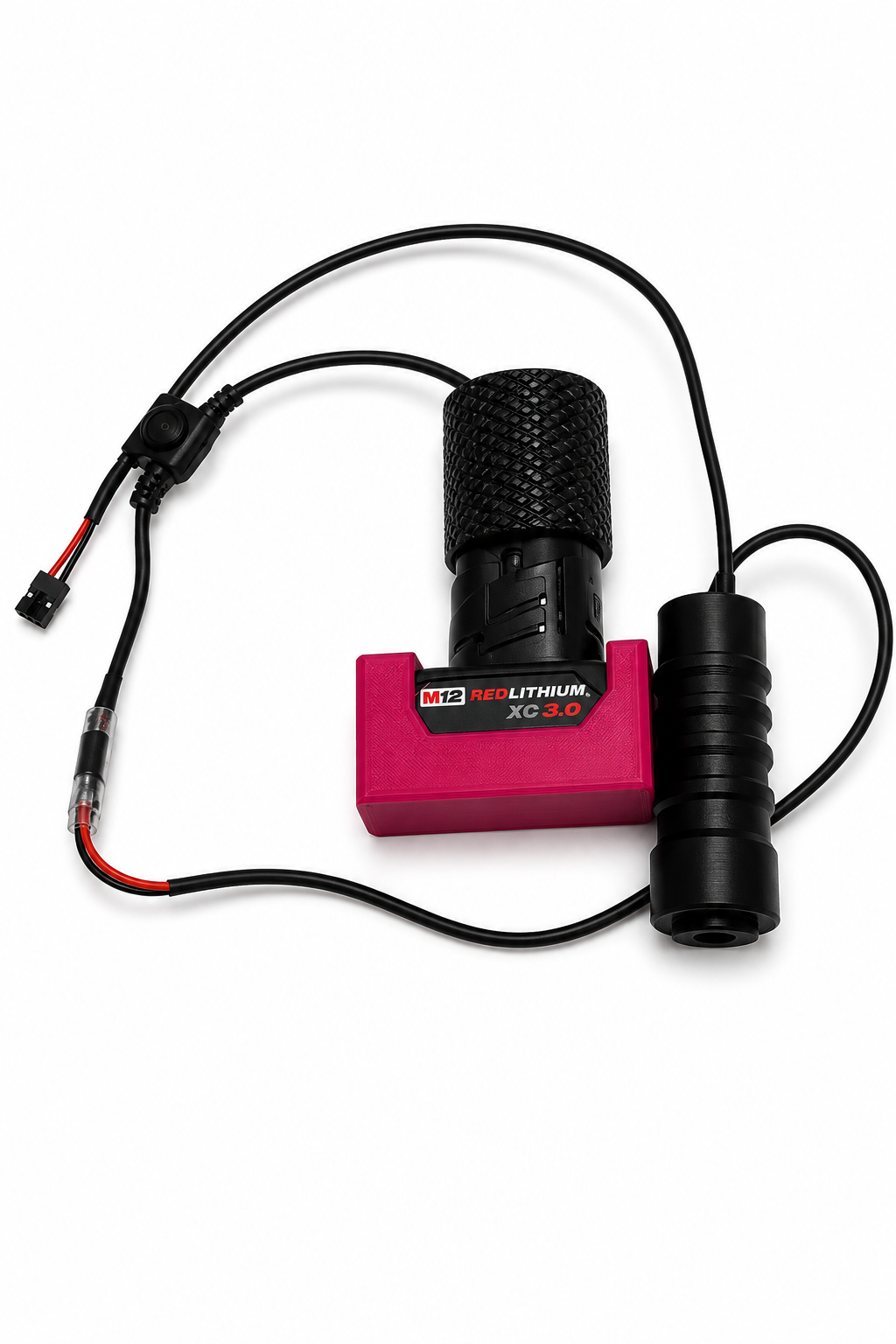

Every motor test above needs 12V at the bench, not a jump box and two alligator clips. The Kaizen Forge M12 Power Adapter runs one off any M12 pack, and the reverse polarity switch flips motor direction without re-clipping leads.
