Power Seat Dead? Test the Motor Before You Buy the Track

A seat that won't move is one of those jobs where the customer is already annoyed before you open the door. They're driving with the wheel in their chest, and the first quote they got was for a whole track assembly. That's rarely what failed. Seat motors are simple 12V reversible motors, and the circuit is easier to prove than the parts cannon suggests.

Find Out Which Motor You're Chasing

An 8-way seat isn't one motor. It's usually four: slide, recline, front tilt, rear tilt. Each has its own small motor and gearbox, sometimes a flexible drive cable to the track. Memory seats add a position sensor at each motor and a seat module watching them.

So list what doesn't work first. One dead axis points at that motor or its gearbox. Nothing working on any axis points upstream at the switch, the module, or the seat power feed.

Power at the Motor Tells You Everything

Backprobe the motor connector, key on, and hold the switch. You want battery voltage on one wire and a solid ground on the other, then the two swap when you press the switch the other way. No ground at all? Check the module ground and the harness where it flexes at the front of the track.

Voltage in both directions and the seat still won't move, so pull the connector and bench the motor. Two wires, 12V, flip the leads to run it the other way. If it grinds or does nothing on clean power, the motor is done. If it runs strong, the fault is mechanical or upstream and you just saved the customer a motor.

Motor Spins, Seat Doesn't

Listen. A motor that whirs with no movement is a stripped plastic gear or a snapped drive cable, not a bad motor. And look in the track first: a coin, a pen cap, or a charge-cord end jams them solid.

Before You Pull the Seat

Disconnect the battery and wait a minute before unbolting a seat with a side airbag, and never probe that yellow connector with a test light. If the seat moves fine but the memory buttons don't, leave the motors alone. That's a module relearn or a bad position sensor.

What We Use

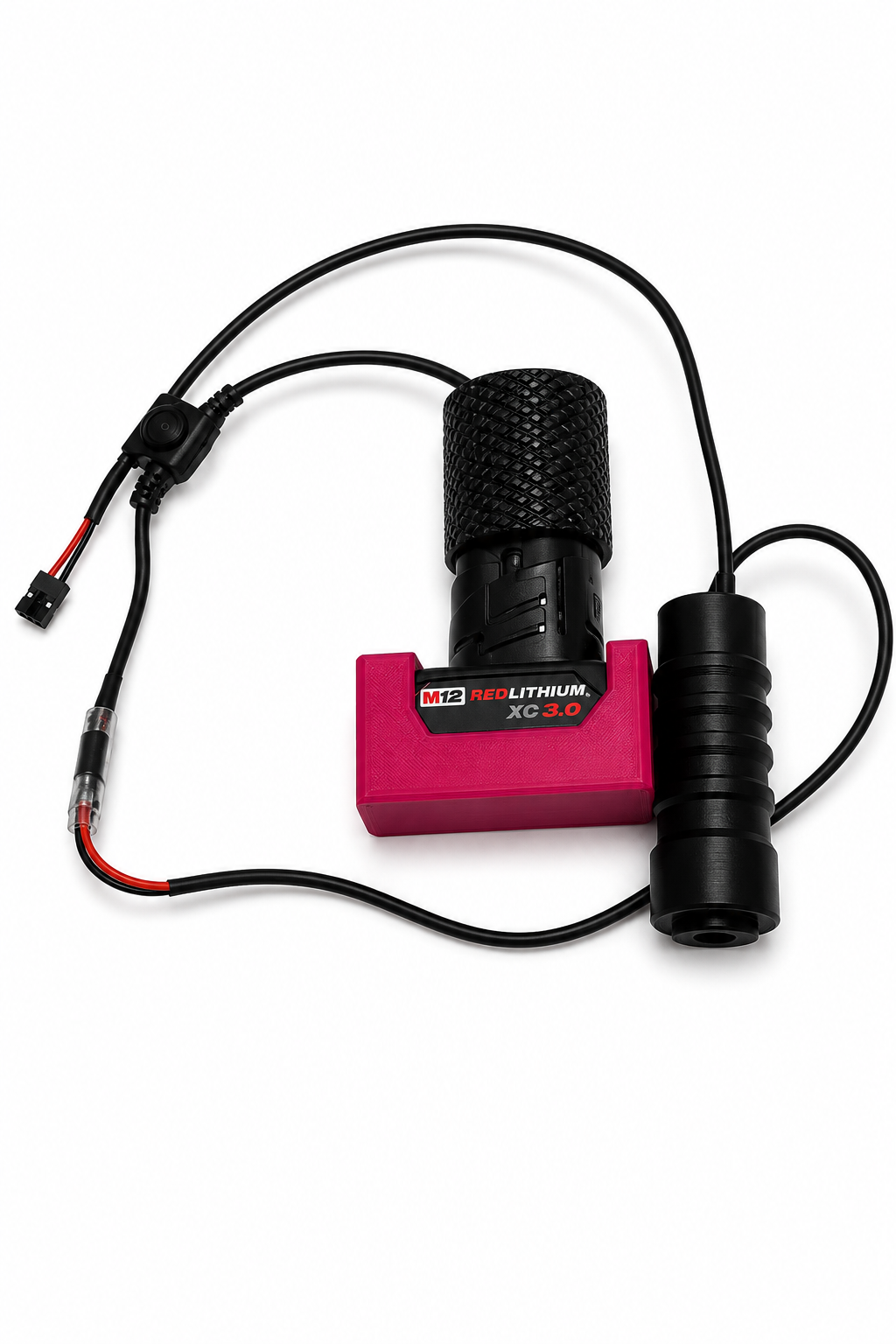

The Kaizen Forge M12 Power Adapter exists for exactly this test. It clips to any Milwaukee M12 pack, and the reverse-polarity switch means you flip a switch instead of swapping leads by hand every time you want the motor to run the other way. The multi-adapter kit covers the small connectors you find under a seat, in a door, and at a window regulator. No dragging a battery across the shop.

Chasing a dead window motor next? Same test order: power window dead. Door locks run the same reversible-motor logic, covered in power door lock testing. When nothing works on any axis, start at the fuse and relay with testing a relay, and repair a flexed harness once with crimp or solder.
