P0442 or P0455? Test the EVAP Purge Valve Before You Buy a Canister

The light comes on two days after a fill-up and the code is P0455 — gross EVAP leak. You throw a gas cap at it. Light comes back. You put a canister in it. Light comes back. Now you're two hundred bucks in and the monitor still won't run.

Stop guessing. The EVAP system is a sealed box with two 12V solenoids on it, and you can test both in your hand.

What P0442 and P0455 Actually Tell You

The monitor only runs with the tank between about 15% and 85% full, so a code after a fill-up is normal, not a clue. P0442 is a small leak — the 0.040-inch kind. Loose cap, cracked filler neck seal, rotted line above the tank. P0455 is a large leak: the system can't hold vacuum at all. That's a cap left off, a hose popped loose, or a purge valve stuck wide open.

A Purge Valve Stuck Open Idles Rough

Here's the symptom that gets missed. Car stumbles at idle or right after a refuel. Fuel trims run rich at idle and clean off-idle. The purge valve is normally closed. When it hangs open, intake vacuum pulls fuel vapor out of the canister constantly — fuel the PCM never commanded. A P0172 usually shows up a few days later.

If the real complaint is a trim problem, chase that first: P0171 and P0174 at the Same Time? Smoke the Intake First.

Bench Test It in Ten Minutes

Unplug it and pull it off the intake — two wires, usually near the throttle body. Ohm it first. Most purge solenoids sit in the 20 to 30 ohm range; wide open means replace it.

Then power it. 12V should give you a clean, audible snap every time, hot or cold. Same trick as Relay Acting Up? Test It in 60 Seconds Before You Call It Bad.

Now the test that catches the failure. With no power on the valve, put a hand vacuum pump on the tank port. It should hold vacuum and keep holding it — the valve is closed at rest. If it bleeds down, it's stuck open, and that is your P0455.

While you're in there: the vent solenoid at the canister should be open at rest and click shut when powered. And look for black carbon pellets in the lines. A canister that came apart sends charcoal into the purge valve and kills the new one. Blow the lines out before anything goes back on.

What We Use

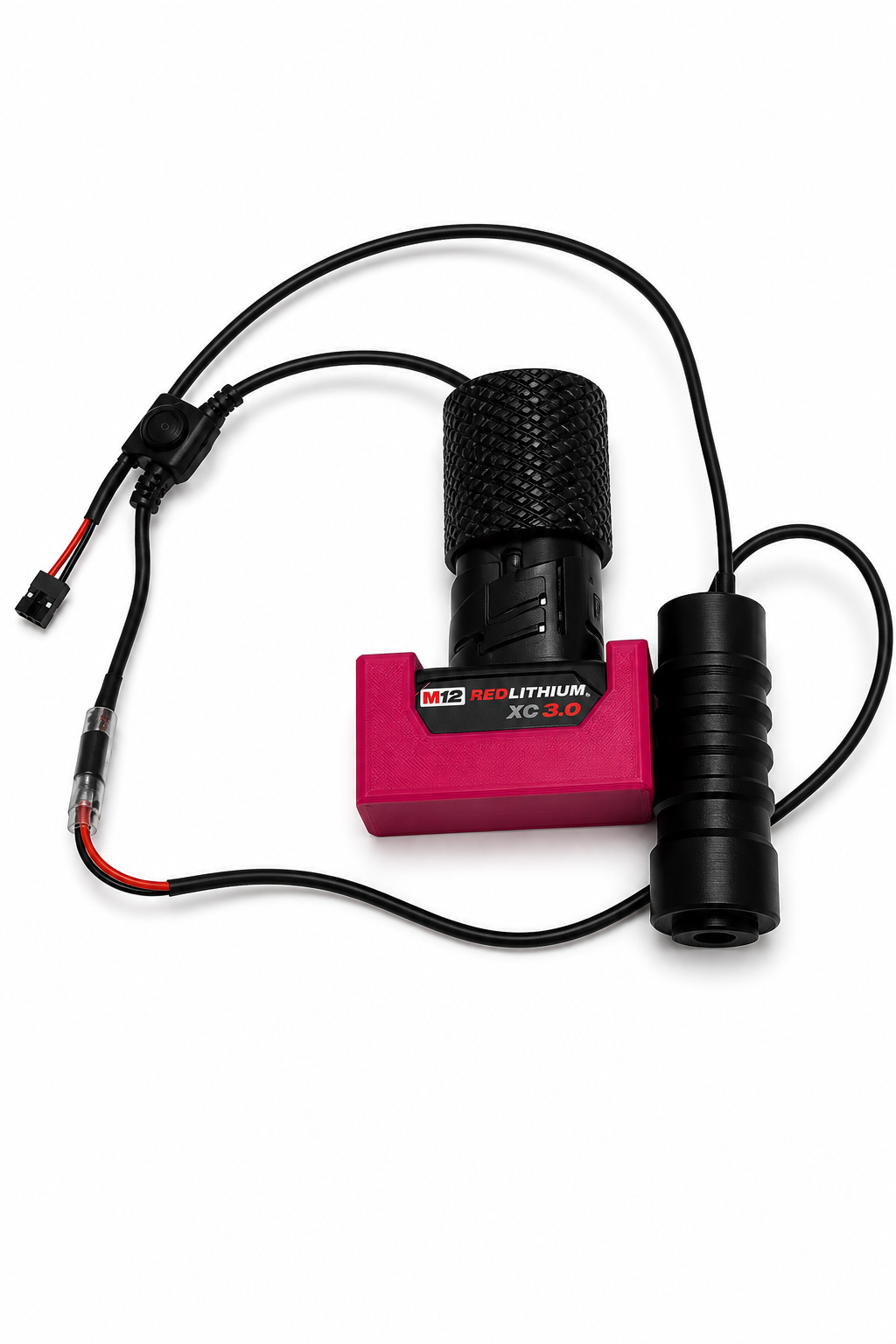

Bench powering a solenoid off a car battery is a hassle, so we do it off the pack. The Kaizen Forge M12 Power Adapter turns any Milwaukee M12 battery into a fused 12V source with a reverse-polarity switch and jumper leads. Purge valve, vent solenoid, or relay — click tested in about a minute. Related: How to Test a 12V Component Without a Scan Tool and Bench Testing Without a Car: Run 12V Off an M12 Battery.
