P0420 Code? Test the Converter Before You Sell a Converter

P0420 shows up on the scanner, the parts guy quotes a converter, and the customer approves it because they are sick of the light. Six weeks later the light is back on and you are eating the labor on a part you did not need to sell. Do not make it a guess.

What P0420 Actually Means

The monitor never looks at the converter directly. It compares the rear oxygen sensor against the front one. A healthy catalyst stores oxygen, so the rear sensor sits steady, holding 0.6 to 0.8 volts with small swings. When the catalyst is spent, the rear sensor copies the front and swings the full 0.1 to 0.9 range.

The monitor only runs on a specific drive cycle: closed loop, steady cruise, engine up to temp. Clear the code and idle it in the bay and you have learned nothing. It has to be driven.

Four Things That Fake a Dead Converter

An exhaust leak ahead of the converter. Outside air gets pulled into the pipe and reads lean at the rear sensor. Check flanges, donut gaskets, and the manifold joint before anything else.

A tired rear O2 sensor. Coolant or silicone poison kills them. Ohm it and watch it live. If the rear sensor is lying, you will buy a converter for nothing. See P0135 O2 Sensor Heater Code.

Rich running or misfires. Raw fuel and coolant cook a catalyst. A stuck injector or a dead coil will kill a brand new converter just as fast as the old one. Chase fuel trims first — P0171 and P0174 walks the intake side, and P0301 Misfire covers the ignition side.

A plugged converter. If it is restricted, you will see low vacuum at cruise and falling power. Confirm with a back pressure gauge before you condemn anything.

The Five-Minute Call

Watch both O2 sensors on live data at a steady 2,000 rpm. The front should swing hard. The rear should stay flat and high. If the rear mirrors the front, the catalyst is done.

Then point an infrared gun at the converter inlet and outlet. A live catalyst runs hotter at the outlet because oxidation is happening inside. Equal or cooler at the outlet means it is not working. Two minutes with a temperature gun beats a $900 guess.

If the Converter Really Is Dead

Find what killed it first. Fuel trims, misfire counters, oil consumption, coolant loss. Fix the root cause, then sell the converter. Otherwise you are installing the last symptom of a problem you left in the engine.

What We Use

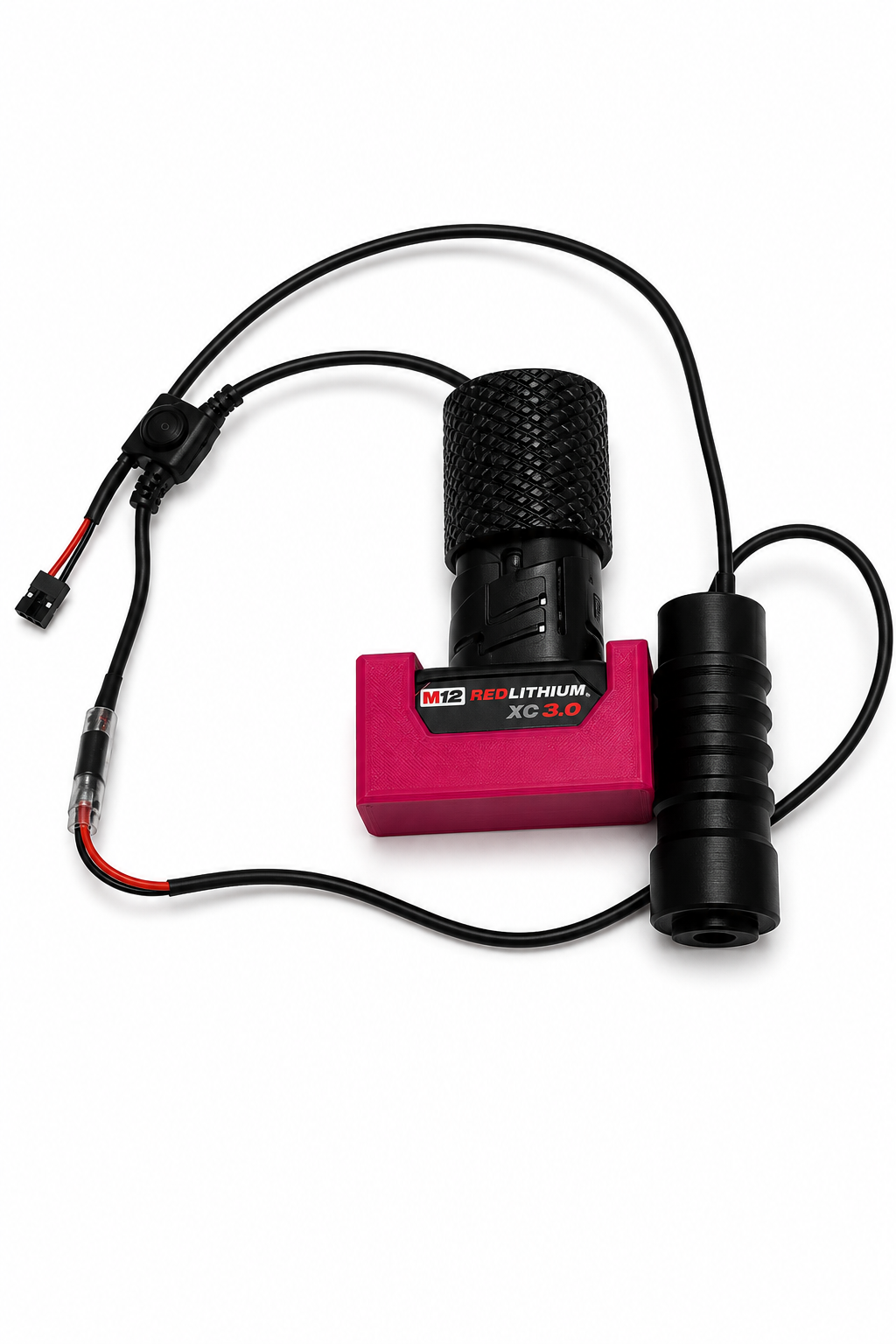

The pre-converter exhaust leak is the one test everyone skips, and it is the cheapest way to save a converter. I run a 12V smoke machine straight off an M12 pack instead of hunting for an outlet. The Kaizen Forge M12 Power Adapter gets 12V to whatever tool I am holding, which gets smoke into the manifold in seconds. Watch it come out at the flanges before you spend the customer's money.
