P0128 Code? Prove the Thermostat Before You Replace the Sensor

A P0128 in a car that runs and drives fine is one of the most misdiagnosed codes in the shop. The light comes on, the scanner says "coolant temperature below thermostat regulating temperature," and the temperature sensor gets replaced because it’s the cheap part and it’s right there in front of you. A week later the light is back — and now the customer thinks you guessed.

P0128 Is a Rationality Code, Not a Sensor Code

That one distinction saves you the comeback. A dead sensor sets P0115, P0117 or P0118 — circuit codes. P0128 means the PCM believes the reading. It just doesn’t like what the reading did. The engine never reached the temperature the thermostat should have held, inside the time and mileage window the monitor allows.

Most of the time the thermostat is stuck open. The rest of the time it’s low coolant, an air pocket left over from a cooling system service, or a fan that never shuts off.

Start With the Cold Soak Check

Park it overnight. Before you start it, pull up ECT and IAT on live data. Both should read ambient and agree with each other within a few degrees. That’s the fastest way to catch a sensor skewed low — if they don’t match, you found it without turning a wrench.

Then put an IR gun on the thermostat housing and the upper radiator hose. Cold engine, same temperature on both. A thermostat that reads 30 degrees off at stone cold is lying to you.

Watch the Stat Open on a Drive

Take it out and watch ECT climb. A healthy engine runs up to the thermostat rating and holds there. A stuck-open stat plateaus 20 to 30 degrees low and never gets there — 165 instead of 195. Feel the upper hose too. It should stay cold, then go hot fast when the stat cracks open. If it warms up slowly with the engine, the stat is open.

Check the fan while you’re in there. A relay stuck closed keeps the fan running and the engine cold, and that sets P0128 all day. It takes five minutes to test a relay, and cheaper than a thermostat you didn’t need. If you do land on the fan circuit, load the motor before you buy one. And if the ECT wiring looks suspicious, voltage drop the ground side before you condemn the sensor.

What We Use

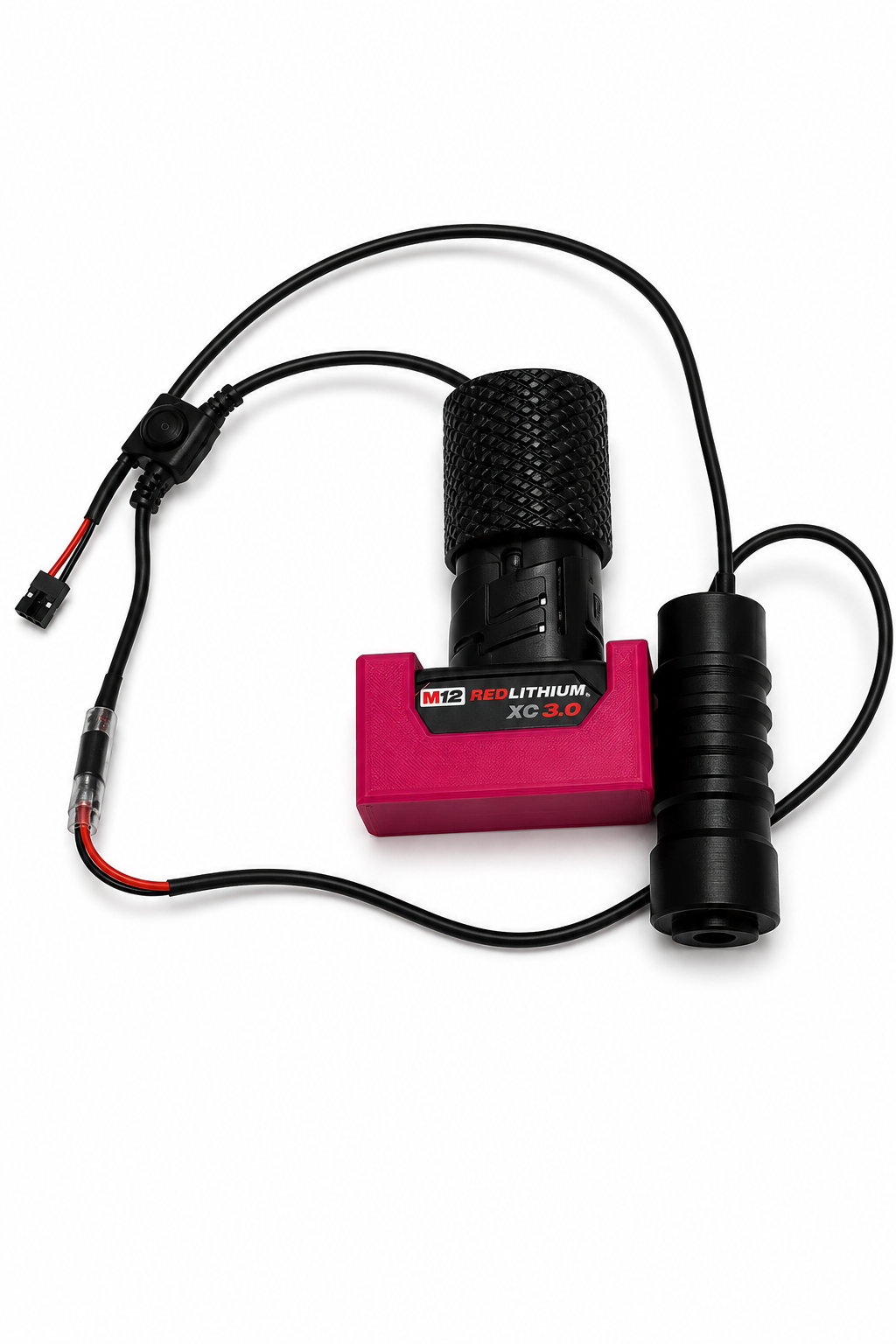

Bench testing a fan relay or a fan motor usually means dragging a battery across the shop. Not worth it. The Kaizen Forge M12 Power Adapter plugs onto any Milwaukee M12 pack and gives you clean 12V and ground on the bench, with a reverse polarity switch so a miswired jumper doesn’t cost you a part. Hit the relay, spin the motor, or light a test light — right where you’re standing.
