Battery Dead Overnight? Measure the Parasitic Draw Before You Swap the Battery

A battery that's dead again a week after you sold one is a comeback you eat. Nine times out of ten it isn't the battery at all — it's a draw pulling it down while the car sits. Here's how to prove it in an afternoon instead of throwing parts at it.

Rule Out the Battery and the Charging System First

Charge the battery to 100% and load test it, or charge it and let it sit overnight to see if it holds. A weak battery folds under a 50 milliamp load, and you'll spend the day chasing a draw that doesn't exist.

Then check the charging side. At idle with everything off you want 13.8 to 14.5 volts at the posts. A leaking alternator diode is a real draw — set your meter to AC volts across the battery with the engine running. More than about half a volt of AC ripple means the alternator is charging wrong and draining you at the same time. If that's where you land, bench test it before you buy one.

Set the Car Up So It Actually Goes to Sleep

Modern cars don't turn off, they go to sleep — and that takes 30 to 60 minutes, longer on some Fords and GMs. Miss it and every reading is worthless.

Close and latch every door, hood, and trunk, or tape the latches shut. Key out, and walk the fob at least 30 feet away; anything that wakes the body control module restarts the sleep timer. Healthy key-off draw is 20 to 50 milliamps. Over 80 and you have a problem.

Find the Circuit Without Pulling Every Fuse

Clamp a low-amp meter around the negative cable and watch it settle. Instead of pulling fuses and waiting out a sleep cycle each time, read the millivolt drop across each fuse with the fuse still in place — a live circuit shows a small drop, a dead one reads zero.

Start with anything aftermarket: hardwired dash cams, amps, remote starters. Then the usual suspects — glove box and trunk lights, a relay stuck closed, seat modules, telematics boxes, and latches that never tell the module they're shut. Five minutes of voltage drop testing on the ground side is worth it too.

What We Use

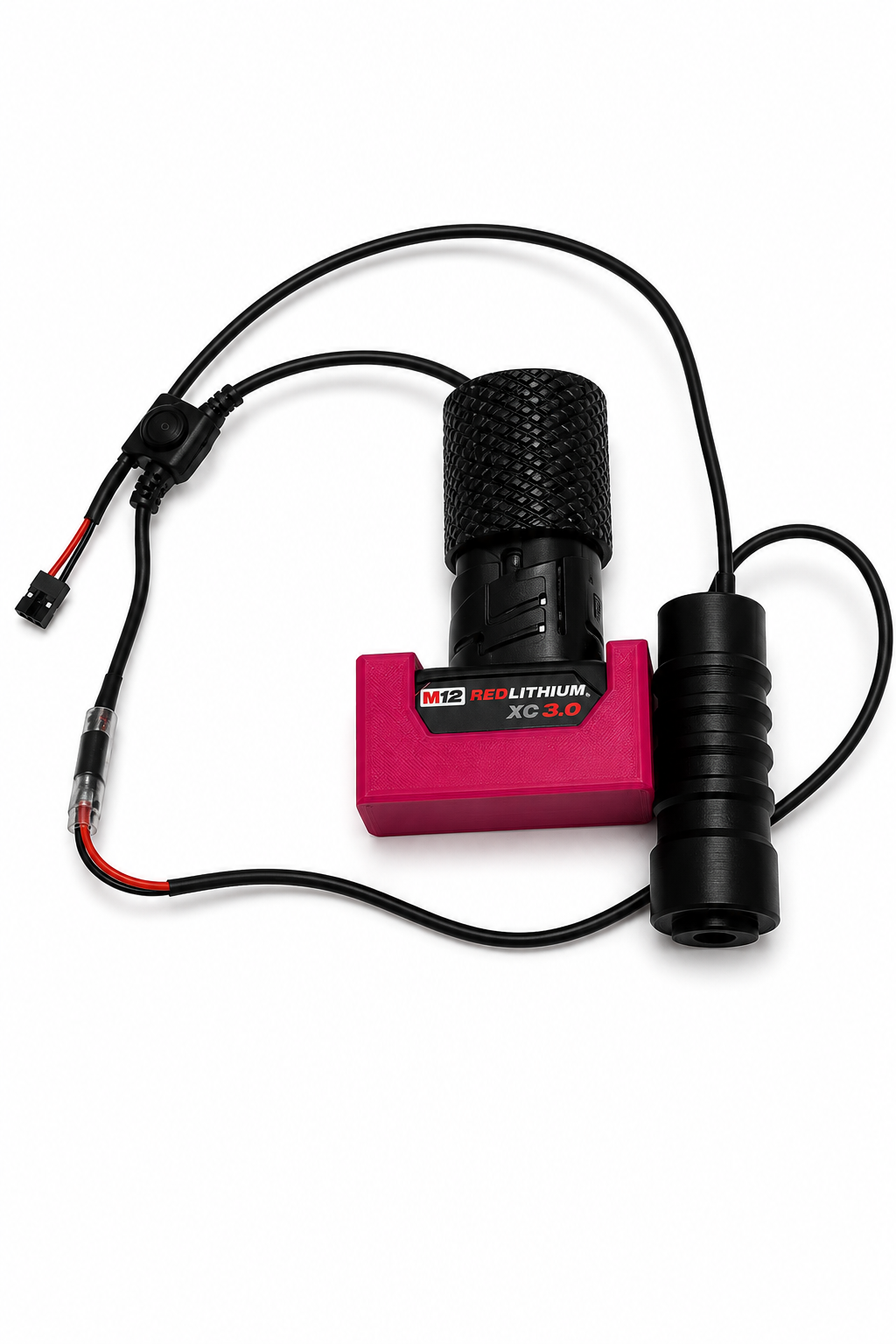

Every time you disconnect the battery or yank a fuse to isolate a circuit, you wipe the radio code, idle learned values, and stored DTCs — and resetting a module restarts the sleep timer you just waited out. The Kaizen Forge M12 Power Adapter feeds live 12V to the lighter socket or memory saver cable while you work, so the car never knows you were there. The reverse-polarity switch means no re-clipping leads when you flip a test. Pair it with the steps in swapping a battery without losing memory.
