AC Blows Hot on One Side? Test the Blend Door Actuator First

Cold on the passenger side, hot on the driver's side. Or a click-click-click behind the dash when you touch the temp button. Half of these jobs, the actuator is fine and the door is the problem. The other half is a restricted heater core. Test before you order parts.

Which Door Is Lying

Dual-zone cars have two blend door actuators, one per side. Hot on the driver's side only means the passenger actuator is not your guy. Single-zone cars run one blend door for both vents, so a temp split there is rarely the actuator.

Clicking is a stripped gear inside the actuator. No heat on one side is the blend door. Air stuck on defrost no matter what you select is the mode door. A fan that only blows on high is a different part, so start with the blower motor resistor test.

The Test That Saves a Dash Pull

Pull the actuator off the case, leave it plugged in, key on, and command the temp from full hot to full cold. Watch the shaft. If it turns, the door is not following: broken pivot, missing foam, or junk in the case. A new actuator will not fix that.

If the shaft does not move, check the connector for corrosion and the signal wire at the control head before you buy anything.

Bench Test It Before You Buy One

Most actuators are a plain 12V motor with a position sensor. Two pins are the motor, usually the heavier pair. Ground the case, feed those pins 12V, and it should run one way. Reverse the leads and it runs the other. Smooth both ways, it is good. Grinds or stalls, it is junk.

Single-wire actuators on a LIN bus do not get jumped. Putting 12V on a bus wire is how you buy a control head too. Small motors bench-test fine off a battery pack with the desk-side setup for running 12V off an M12 pack, and a dead window motor is the same test: prove it before you buy a regulator.

Calibrate It, Then Check the Cheap Stuff

New actuators need a calibration. Key on, hands off the controls for 30 to 60 seconds, or run the HVAC relearn in the scan tool. Never shove the door by hand to line it up. You will strip the new gear or snap the door and be pulling that dash.

Check the cooling system before you sell parts. A restricted heater core gives heat on one side with the AC on max, and low coolant or an air pocket does the same. No actuator fixes that.

What We Use

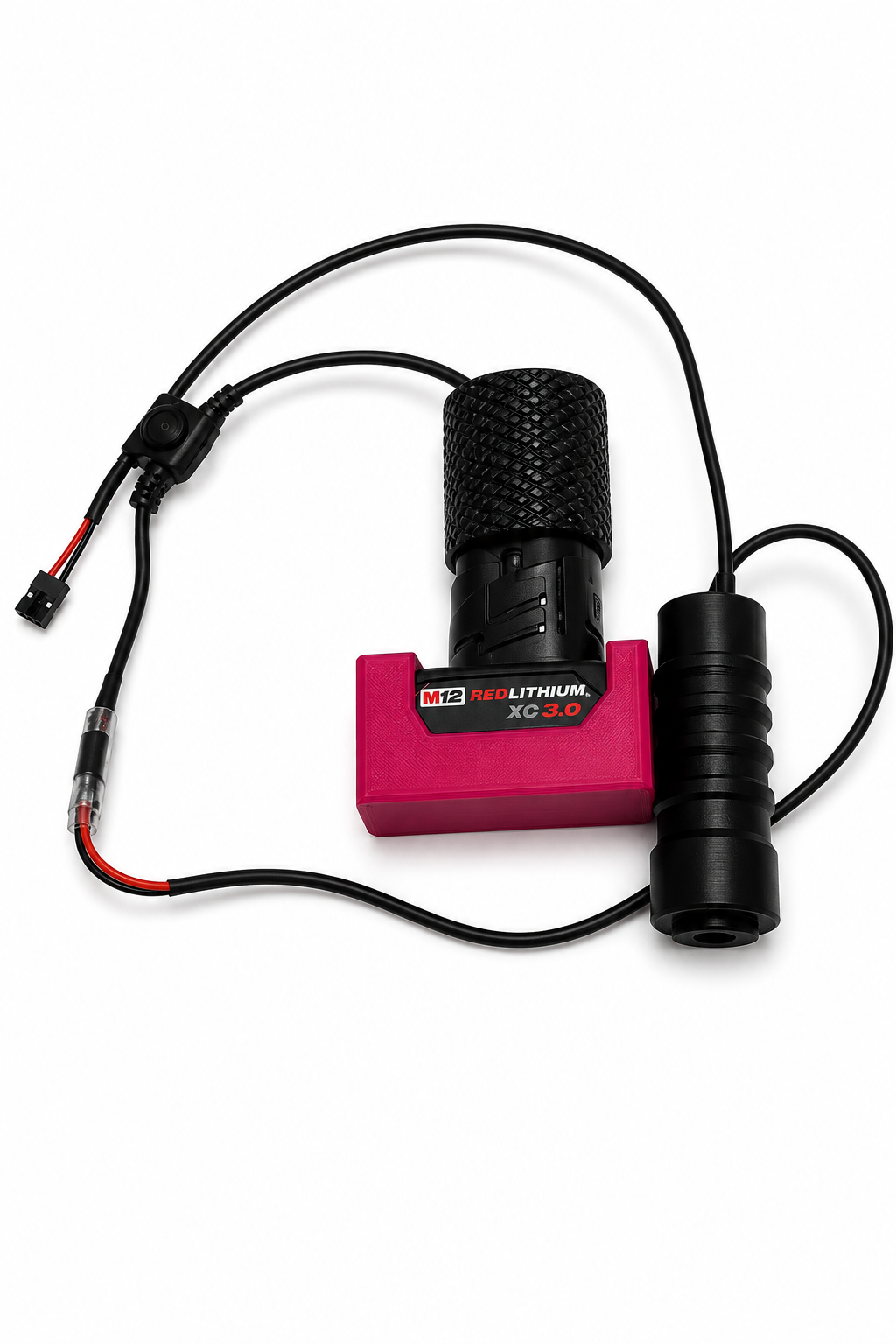

Bench testing 12V motors at the car is where the Kaizen Forge M12 Power Adapter earns its keep. It clips onto any Milwaukee M12 pack, gives a fused 12V feed, and the reverse polarity switch spins an actuator or window motor both ways without swapping leads. It doubles as a memory saver. Made in USA, shop-tested.
